Home > Fiber Optic Adapter >

Ceramic Or Bronze Sleeve APC Fiber Optic Cable Adapter With Shutter

Product Categories

TTI Fiber Communication Tech. Co., Ltd.

Contact Now

Ceramic Or Bronze Sleeve APC Fiber Optic Cable Adapter With Shutter

Name: Ceramic Or Bronze Sleeve APC Fiber Optic Cable Adapter With Shutter
Brand: TTI/OEM/ODM
Price: 1 USD

China Ceramic Or Bronze Sleeve APC Fiber Optic Cable Adapter With Shutter wholesale

Brand Name : TTI/OEM/ODM

Model Number : MPO

Certification : ISO, SGS, ROHS

Place of Origin : China

MOQ : 25pcs

Price : Negotiation

Payment Terms : T/T, L/C, , PayPal

Supply Ability : 500000pcs/month

Delivery Time : 2~3 days

Packaging Details : Plastic bag

Connector Type : SC

Mode : Singlemode, Multimode

Type : Simplex

Sleeve : Zirconia/Ceramic, Copper

Housing : Metal, Plastic

Color : Red, White, Black, Yellow color

End-face : PC, UPC, APC

Structure : Female to Female

Contact Now

Ceramic or Bronze Sleeve APC Fiber Optic Adapter with Shutter

Optic fiber receiver (also known as the flange, coupling) is a fiber optic connector for connection components, the product variety, including FC, SC, ST, LC, MTRJ, MPO etc. , as well as carry out the transfer of goods between each other.

Application:

Optical fiber transmission network
Cable network
Fiber LAN Network
Fiber optic patch panels, rack and wall mount fiber distribution

Feature:

Excellent Repeatability
Excellent Interchangeability
Superior performance, stable and reliable.
Flexible and easy to use
Repeatability, interchangeability
Working temperature: -40 ℃ -80℃

Specification:

Size	LC, SC, FC, SC-SC FC-FC, LC-LC,				MTRJ
type	Single mode			Double mode	Single mode		Double mode
	PC	UPC	APC	PC	PC	UPC	PC
Insertion Loss (dB)	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2
Return Loss (dB)	≥45	≥50	≥60	≥30	≥45	≥50	≥35
Interchangeability (dB)	≤0.2				≤0.2
Repeatability (dB)	≤0.2				≤0.2
Mechanical durability	>1000				>1000
Working temperature( ℃)	-40~75				-40~75
Storage Temperature	-45~85				-45~85

Order Information:

LC/PC-ST/PC-SM-Duplex-Plastic
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT, metal

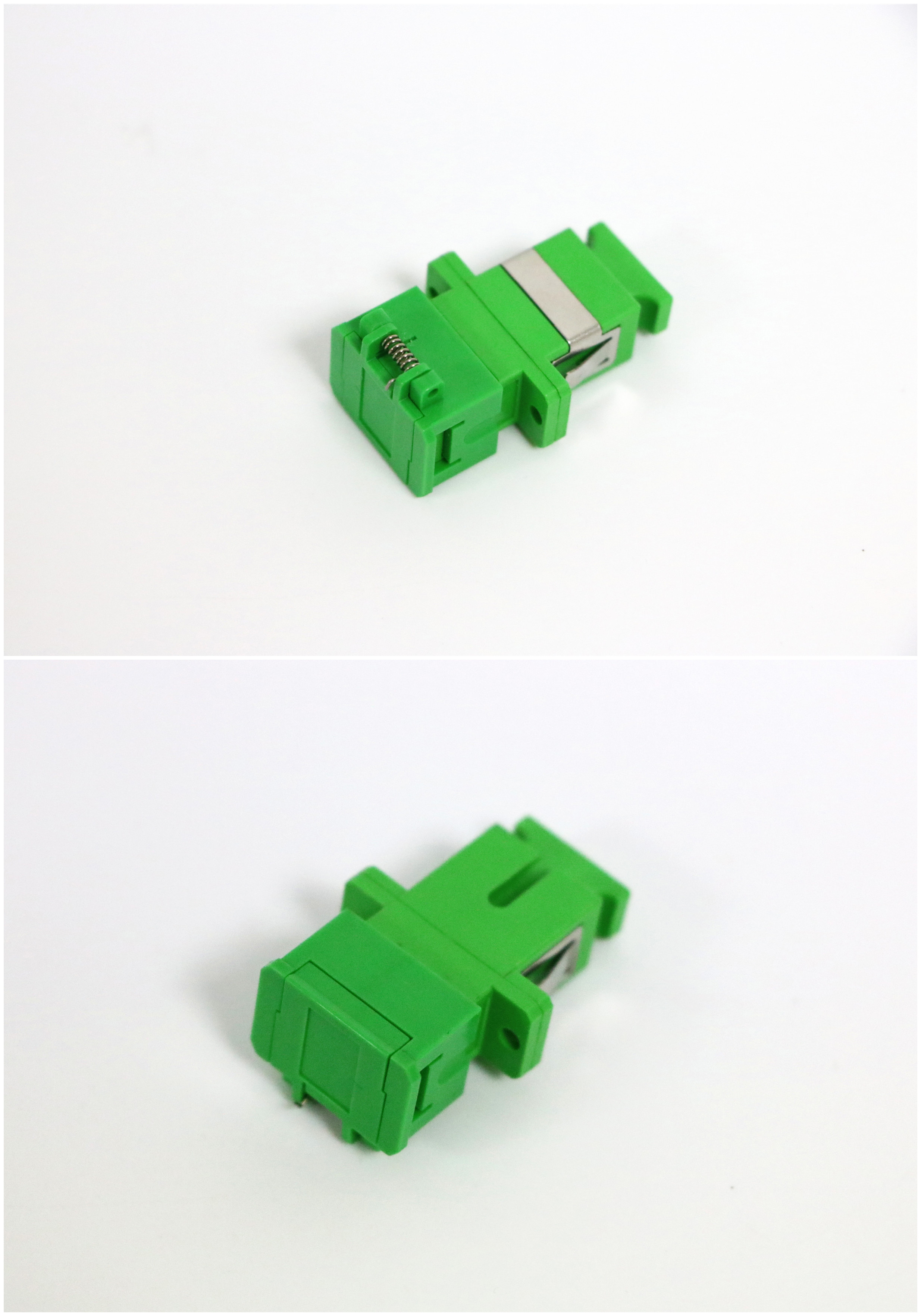

Ceramic Or Bronze Sleeve APC Fiber Optic Cable Adapter With Shutter

Product Tags:

fibre optic adapter

female female adapter

Ceramic Or Bronze Sleeve APC Fiber Optic Cable Adapter With Shutter Images
